Examples

Adding entities

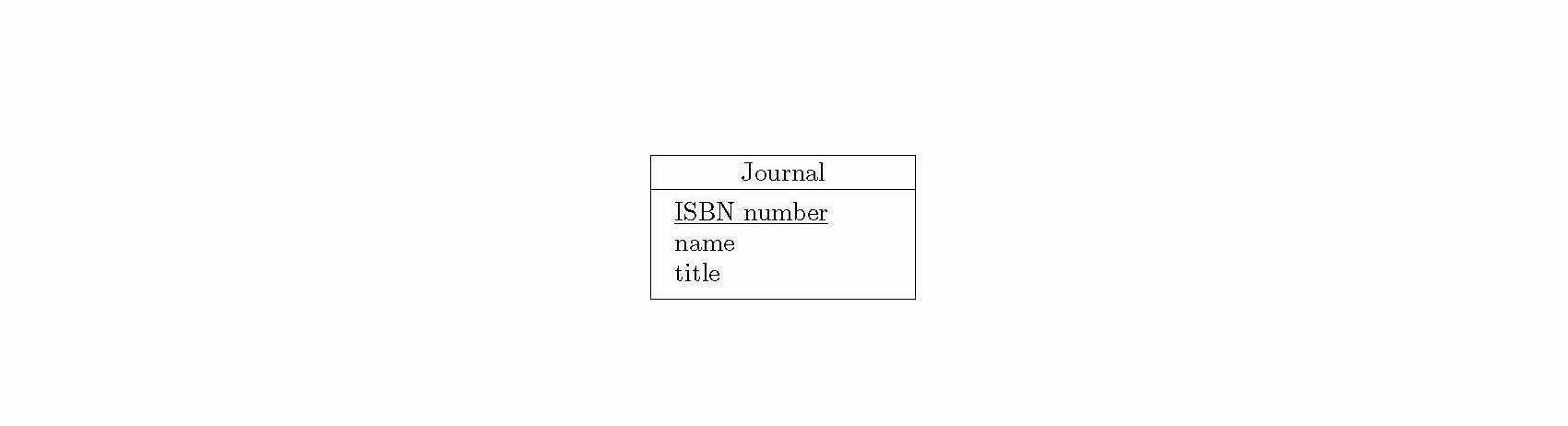

Adding the first entity to the diagram is easy: just create an ERDiagram object with an existing entity:

from texonomy import Entity, ERDiagram

# create an Entity
journal = Entity("Journal", ["ISBN number", "name", "title"])

# add it to the ER diagram
diag = ERDiagram(journal)

# write out the LaTeX code
with open("example.tex", "w") as er:
    er.write(diag.to_latex())

Output

Adding relationships

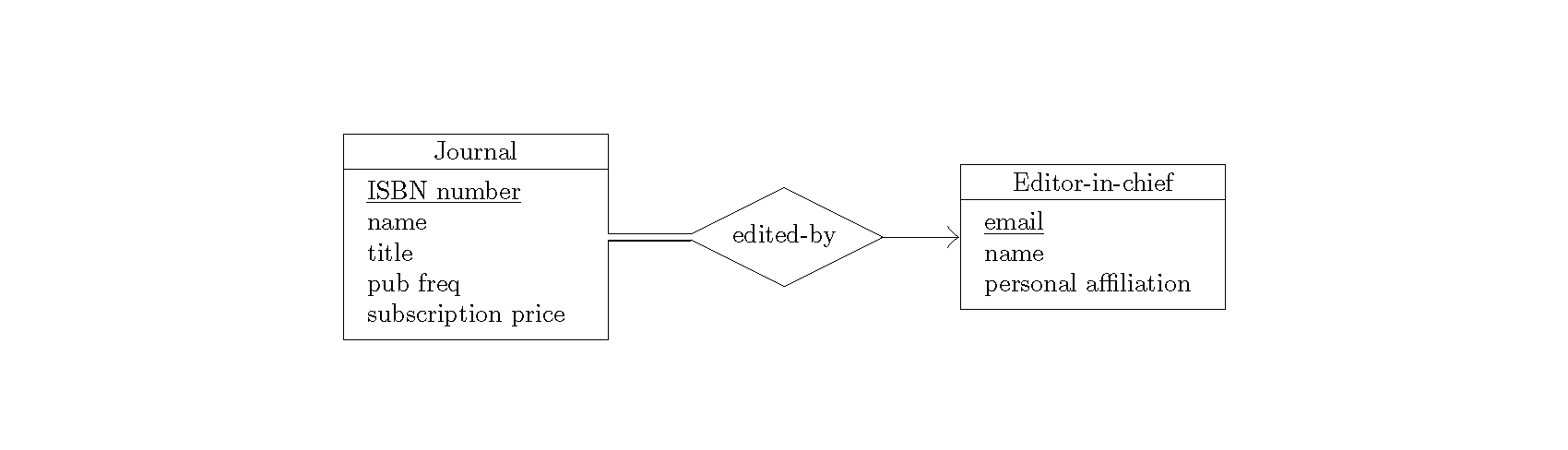

As soon as there are multiple entities, you’ll have to attach them using Relationships:

from texonomy import Entity, ERDiagram, Relationship, Direction, MANY_TO_EXACTLY_ONE, EXACTLY_ONE_TO_MANY

# create an entity
journal = Entity("Journal", ["ISBN number", "name", "title", "pub freq", "subscription price"])

# add it to the diagram
diag = ERDiagram(journal)

# create another entity
editor = Entity("Editor-in-chief", ["email", "name", "personal affiliation"])

# Add this relationship to the diagram. The new entity will be placed to
# the right of the existing one, and its label will read "edited-by".
diag.add_relationship(Relationship(journal, editor, "edited-by", MANY_TO_EXACTLY_ONE, Direction.RIGHT))

# write out the LaTeX code
with open("example.tex", "w") as er:
    er.write(diag.to_latex())

Output

Adding relationships (with attributes)

from texonomy import Entity, Relationship, ERDiagram, EXACTLY_ONE_TO_MANY, Direction

# create an entity
journal = Entity("Journal", ["ISBN number", "name", "title"])
issue = Entity("Issue", ["issue-num"])

diag = ERDiagram(journal)

diag.add_relationship(
    Relationship(journal, issue, "issues", EXACTLY_ONE_TO_MANY, Direction.BELOW, ["publication-date"])
)

with open("example.tex", "w") as er:
    er.write(diag.to_latex())

Output

Adding specializations

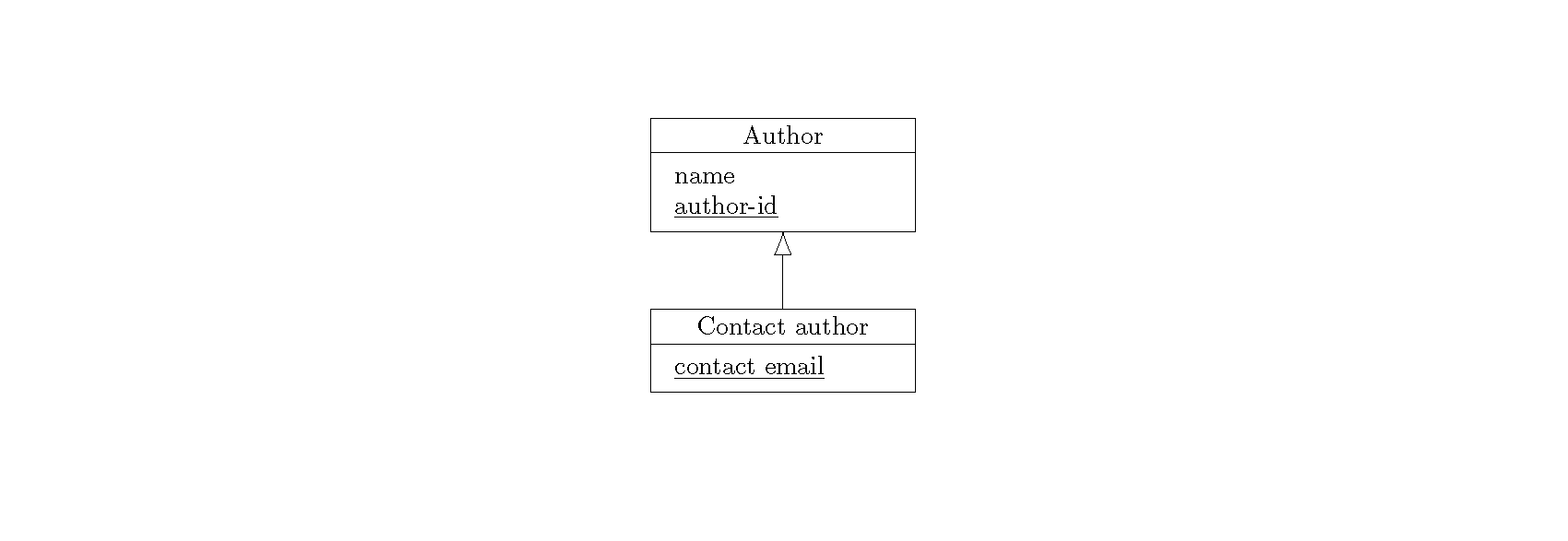

Specializations are similar to relationships, but they don’t require using a Relationship object. This example, in addition, sets the primary key of the “author” entity to be “author-id” instead of the default, “name”.

from texonomy import Entity, ERDiagram

# create an entity
author = Entity("Author", ["name", "author-id"])

# set the primary, since we don't want it to be the default
author.set_primary("author-id")

# create another entity which will specialize from the author entity
contact_author = Entity("Contact author", ["contact email"])

# create an ER diagram with the author entity
diag = ERDiagram(author)

# add a specialization
diag.add_specialization(author, contact_author)

with open("example.tex", "w") as er:
    er.write(diag.to_latex())

Output

Adding weak entities

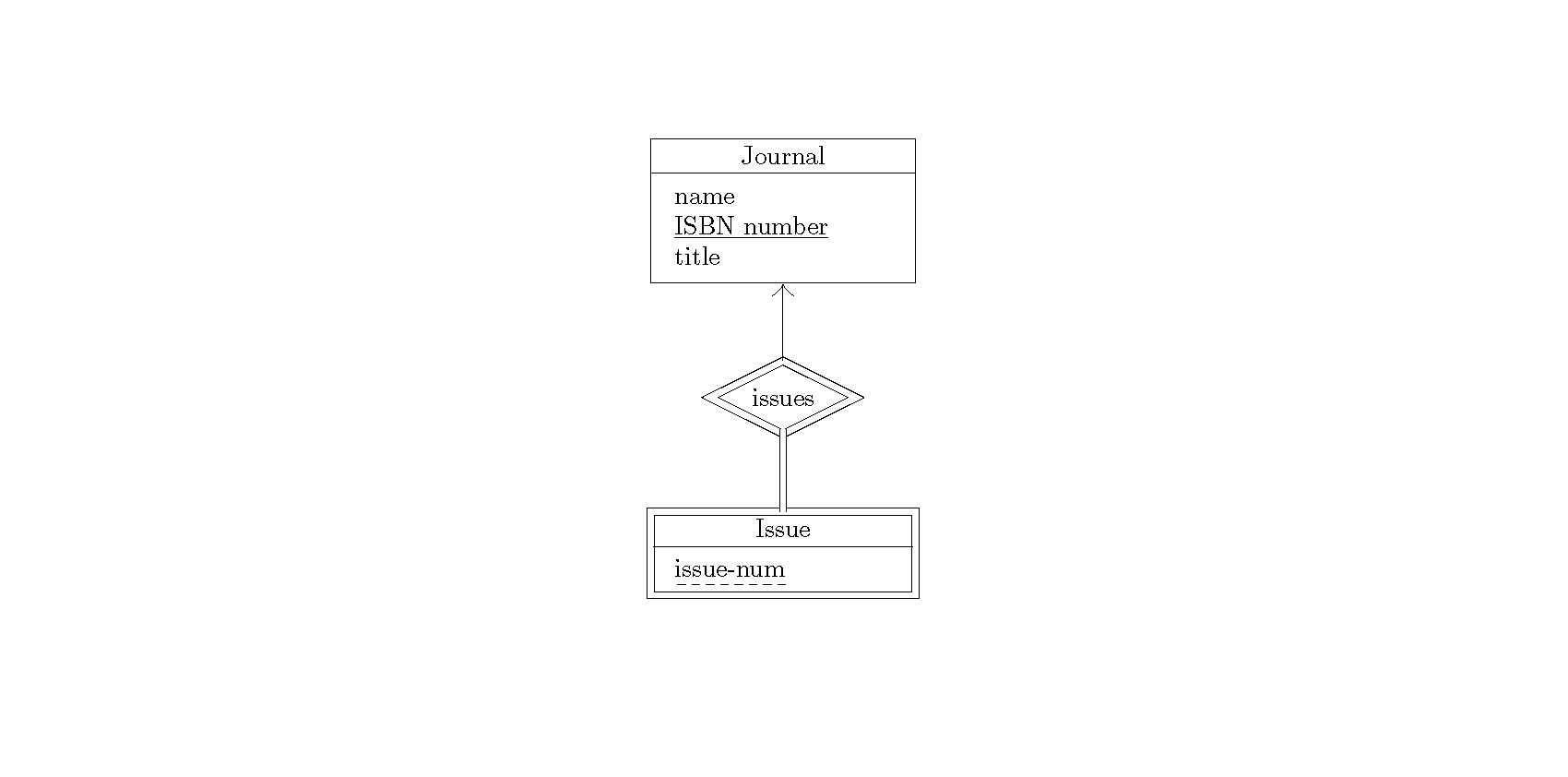

Working with weak entities isn’t much different than regular entities. Just specify True for the last argument to the Entity constructor, and specify any defining relationship by passing True as the last argument to add_relationship().

from texonomy import Entity, Relationship, ERDiagram, EXACTLY_ONE_TO_MANY, Direction

journal = Entity("Journal", ["name", "ISBN number", "title"])
journal.set_primary("ISBN number")

# Issue is a weak entity.
issue = Entity("Issue", ["issue-num"], True)

diag = ERDiagram(journal)

# The last boolean param (optional) is set to true to indicate that this is a
# defining relationship.
diag.add_relationship(Relationship(journal, issue, "issues", EXACTLY_ONE_TO_MANY, Direction.BELOW), True)

with open("example.tex", "w") as er:
    er.write(diag.to_latex())

Output
